Converting a machine to hand crank
#31
Power Poster
Join Date: Mar 2011
Location: Somewhere
Posts: 15,506
[ATTACH=CONFIG]539708[/ATTACH]

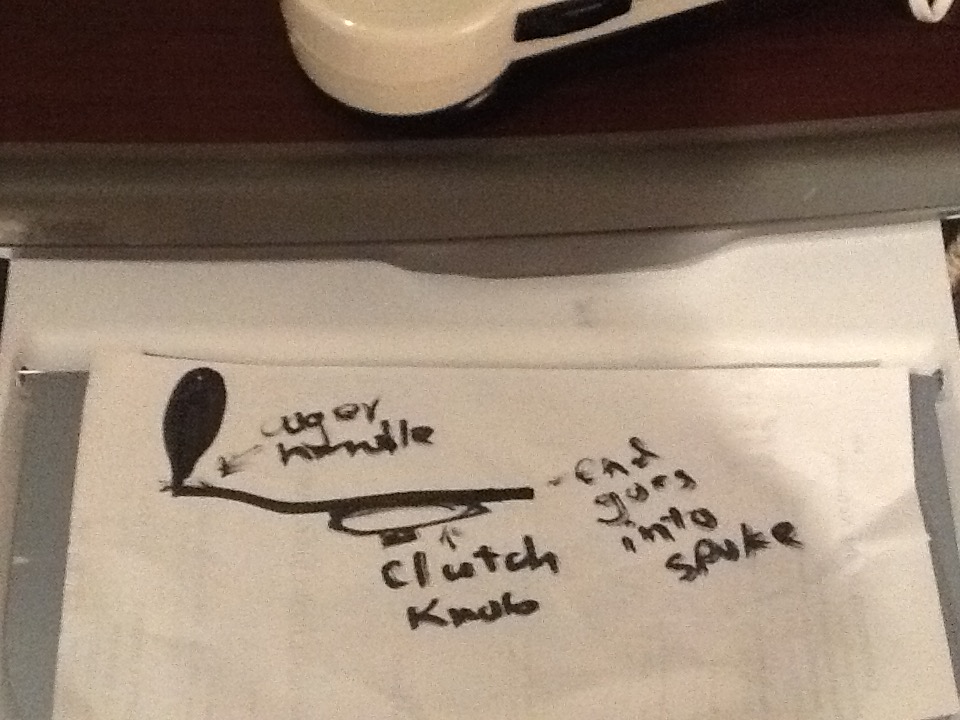

See if my crude drawing helps.
The knob went out as long as the hand wheel. The bar was welded to the clutch knob. Clutch was removable. It would be nice if the other end kind of went between spokes. Clutch knob cannot be exchanged if it bends down between spokes it would be impossible to remove. It could be welded already on the machine in that bent position but couldn't be loosened. Done deal...
See if my crude drawing helps.
The knob went out as long as the hand wheel. The bar was welded to the clutch knob. Clutch was removable. It would be nice if the other end kind of went between spokes. Clutch knob cannot be exchanged if it bends down between spokes it would be impossible to remove. It could be welded already on the machine in that bent position but couldn't be loosened. Done deal...
#36
I plan on making a portable handcrank for my treadle machines. I know it should mount to the back of hte machie, but if I rotate it sideways, I can mount it to a board (or other support) that lines up behind the machine, and still have the crank hook correctly into the flywheel. I want to make something adjustable so I can use it with any of the treadles, since I'm also making bases for them so they can all fit into the same treadle base. I don't have room for a lot of bases, but I sure have a lot of machines.
