  1. #11
    Senior Member
    Join Date
    Jan 2010
    Location
    Alberta, Canada
    Posts
    572
    Quote Originally Posted by dar627742
    don'tknow any more about the pc than i do the pfaff,so can't send pics.the # on the back of the manual arevsm groupab se-561 84 huskvarna sweden
    do you have the same book?mine ends w/5-6,& is thinner than a small catalog. as far as i can tell,it doesn't go into detail onanything,just lists w/it does,not how to do it.if you have a diff.book ,or know of one,i'd sure appreciate knowing where to get one !
    tha again,dar
    Mine says owner's manual on the bottom left on the front.

    I am going to scan some pages regarding the fmq and send them to you

  2. #12
    Senior Member
    Join Date
    Jan 2010
    Location
    Alberta, Canada
    Posts
    572
    Dar,

    Make sure you have the idt off when you do the fmq.

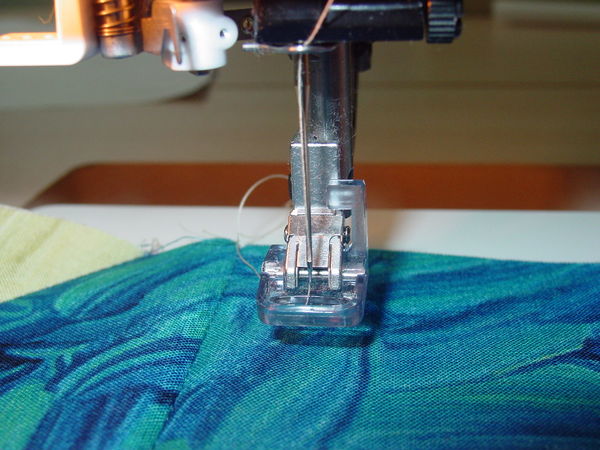

    Put your foot on, it should look like the first picture.

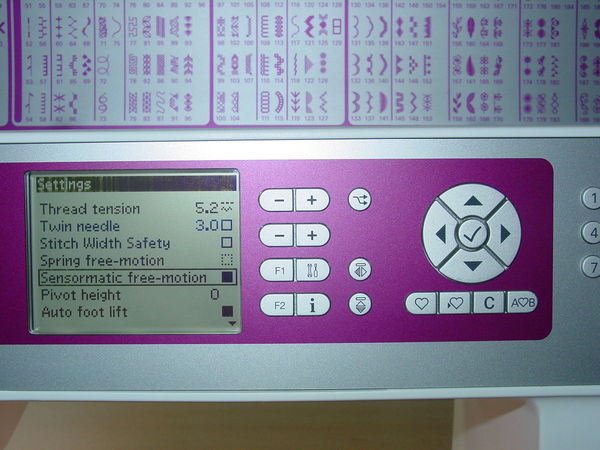

    Then hit the button(settings menu button) that is directly above the i (info button) and to the right of F1

    then hit the down arrow button that is on the circle until the box that says sensormatic is filled in. Then hit the check mark in the circle button. Then hit the button that lowers your presser foot, lower the feed dogs and you should be good to go.

    My husband is scanning the manual pages. I'll post them soon. Good luck. Let me know if this helps or if you need more.

    sensormatic foot
    Name:  Attachment-174693.jpe
Views: 5
Size:  53.6 KB
    Attached Images Attached Images

  3. #13
    Super Member chairjogger's Avatar
    Join Date
    May 2008
    Location
    My favorite place in the world is Lake Erie Region USA
    Posts
    2,750
    Blog Entries
    2
    no utubes for this? google utube and subject as in one sentance.. good luck.

  4. #14
    Senior Member
    Join Date
    Jan 2010
    Location
    Alberta, Canada
    Posts
    572
    here are the pages from the manual
    Attached Images Attached Images

  5. #15
    Senior Member
    Join Date
    Jan 2010
    Location
    Alberta, Canada
    Posts
    572
    I forgot to mention that when you forget to drop the feed dogs, it still works very well.

    Good luck.
