    Old 11-07-2014, 08:18 PM
      #121
    Member

    Join Date: Nov 2014
    Location: Athens, WV
    Posts: 4
    Default

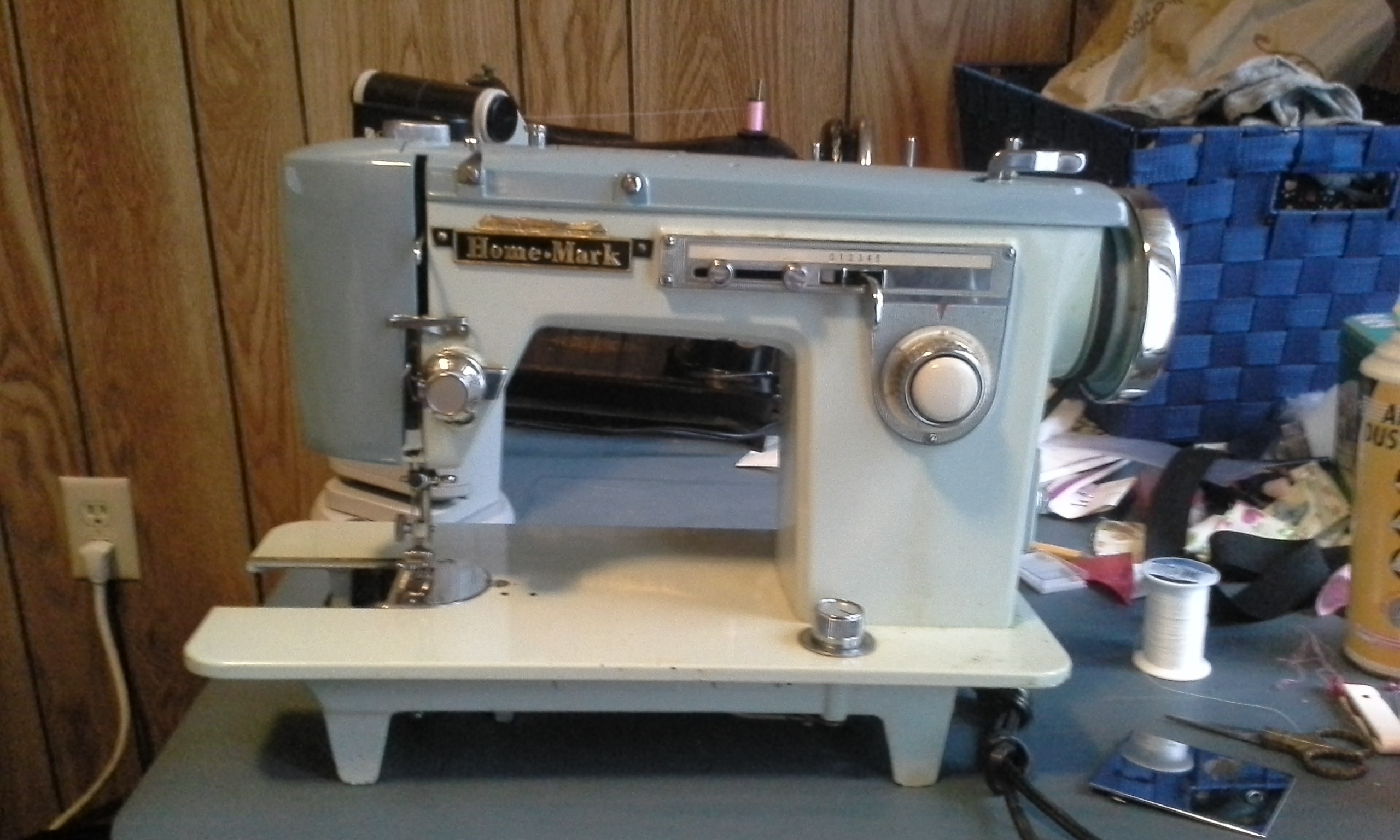

    Was just given this machine by a friend who found it in a house he bought. From says HomeMark 775490 JA26; bottom says Brother M6826. Came with a box of cams (one missing), a manual that never mentions a model, and assorted sewing "stuff" I haven't messed with. Can't find much info so anything appreciated. [ATTACH=CONFIG]498040[/ATTACH]
    Attached Thumbnails Click image for larger version

Name:	20141107_165531.jpg
Views:	3636
Size:	997.8 KB
ID:	498040
    bookw0rm is offline
    Old 11-07-2014, 11:02 PM
      #122
    Banned

    Join Date: Aug 2014
    Location: Victorian Sweatshop Forum
    Posts: 4,096
    Default

    It was built by Brother in the late '60s, not much more to tell.

    Cari
    Cari-in-Oly is offline
    Old 11-08-2014, 12:33 AM
      #123
    Junior Member

    Join Date: Jul 2014
    Posts: 113
    Default

    Wow! Miriam thanks for sharing, I love the first one - may have to take up collecting vintage machines myself!

    When your going thru hell - keep going Winston Churchill
    Vicki (Adelaide SA) is offline
    Old 11-08-2014, 01:47 AM
      #124
    Power Poster
    Thread Starter

    Join Date: Mar 2011
    Location: Somewhere
    Posts: 15,506
    Default

    Originally Posted by bookw0rm
    Was just given this machine by a friend who found it in a house he bought. From says HomeMark 775490 JA26; bottom says Brother M6826. Came with a box of cams (one missing), a manual that never mentions a model, and assorted sewing "stuff" I haven't messed with. Can't find much info so anything appreciated. [ATTACH=CONFIG]498040[/ATTACH]
    You won't find a manual for a specific machine most likely so you are right the manual is even generic. Brother badged a lot of machines. Some times you will see markings on the bottom. I have an Electro Grand with 'Brother' cast in raised letters on the hand wheel it's inside where you can't see it. Usually there is some indication of the maker on the bottom of the machine. I saw a new one the other day it said Dragon.

    The two buttons on the front are there to hold the zig zag lever in place if you want uniform stitches or if you want you can move the zz lever back and forth and modulate the stitches but you have to have perfect timing for it to look like much. The big button is reverse - outside it is a stitch length dial. Often I see the reverse button frozen up. It isn't the button frozen it is the works behind it inside the machine.
    miriam is offline
    Old 11-08-2014, 12:40 PM
      #125
    Member

    Join Date: Nov 2014
    Location: Athens, WV
    Posts: 4
    Default

    Thanks for the quick responses, Cari-in-Oly and miriam. I only just got it yesterday afternoon. After oiling it up, it does appear to be functional, but I'm going to have to work on some tension settings before I try anything significant (or play with the fancy stitches). It's in pretty good shape for having been abandoned in a house that I've been told was in really bad shape. The "Brother" label is on the workings underneath, not actually on the body of the machine (all the other stamps are in the metal, and the JA26 is hard to read; someone has marked over it--may be a 28).

    I've seen a couple references to a list in the Yahoo group for dating Japanese badged machines; how do I find it?

    I think I may be getting addicted to old machines myself...I have a Singer Featherweight that was a gift and a Singer (model 99, I think) from the 40's (I have the info. at home).
    bookw0rm is offline
    Old 11-08-2014, 01:13 PM
      #126
    Senior Member

    KenmoreRulesAll's Avatar

    Join Date: Mar 2014
    Location: Puget Sound Region
    Posts: 772
    Default

    That's a rebadged Brother Charger, perhaps a Charger 651. 1960s machine.
    KenmoreRulesAll is offline
    Old 11-08-2014, 04:41 PM
      #127
    Member

    Join Date: Nov 2014
    Location: Athens, WV
    Posts: 4
    Default

    Originally Posted by KenmoreRulesAll
    That's a rebadged Brother Charger, perhaps a Charger 651. 1960s machine.
    It sure looks like one; only the stitch selection area looks different. Thanks!
    bookw0rm is offline
    Old 11-08-2014, 05:14 PM
      #128
    Member

    Join Date: Nov 2014
    Location: Athens, WV
    Posts: 4
    Default

    Originally Posted by KenmoreRulesAll
    That's a rebadged Brother Charger, perhaps a Charger 651. 1960s machine.
    It sure looks like one; only the stitch selection area looks different. Thanks!
    bookw0rm is offline
    Old 11-08-2014, 06:28 PM
      #129
    Banned

    Join Date: Aug 2014
    Location: Victorian Sweatshop Forum
    Posts: 4,096
    Default

    Originally Posted by KenmoreRulesAll
    That's a rebadged Brother Charger, perhaps a Charger 651. 1960s machine.
    Also looks like the "Project" machines, it's real close to my Project 651.

    Cari
    Cari-in-Oly is offline
    Old 11-08-2014, 06:37 PM
      #130
    Banned

    Join Date: Aug 2014
    Location: Victorian Sweatshop Forum
    Posts: 4,096
    Default

    Originally Posted by bookw0rm

    I've seen a couple references to a list in the Yahoo group for dating Japanese badged machines; how do I find it?
    No, not for dating them, there are no records for Japanese machines like there are for American machines and some others. The lists are for using the JA and JC numbers to possibly figure out the manufacturer. In your case it wasn't needed. No question who built it.

    Cari
    Cari-in-Oly is offline
