Cleaning you Vintage Machine Part Three......Finish Repair

Cleaning you Vintage Machine Part Three......Finish Repair

Old 05-21-2010, 11:26 PM
  #1
Banned
Thread Starter

Join Date: Oct 2009
Location: Bikini Bottom
Posts: 5,652
Default

This is something I purposely left off of the cleaning of the machine because it does not involve cleaning it is repairing the finish.

I have paint out on my shop that I had mixed to specifically to mimic the japan finish on the vintage Singer machines. But since I didn't think everyone would have a paint store near them to use my formula I thought I would try something different.

My machine had some really nice road rash going on and I wanted to make it at least more presentable than it was. So I went to the local Micheals and pilfered around in the paint and model section. I found a gloss black paint pen made by Testors that looked like it would fit the bill. I purchased it for a mere $2.49 and headed to the house to see if it would do the same thing my high end custom mix would do.

It worked perfectly and the nice thing is the color matched really well and you can find this at your local hobby store!!

All I did was pump the pen a few time to get the paint flowing and I touched up the areas that were missing the japan. I need this to dry for at least 1 to 2 days so that it will be good and dry upon the final polish of the machine. Yep you are going to be polishing some more!!!!

Here are the photos of what I fixed and even though the decals are worn and all it looks so much better that it did when I started it. I highly recommend this paint pen!!!

Billy

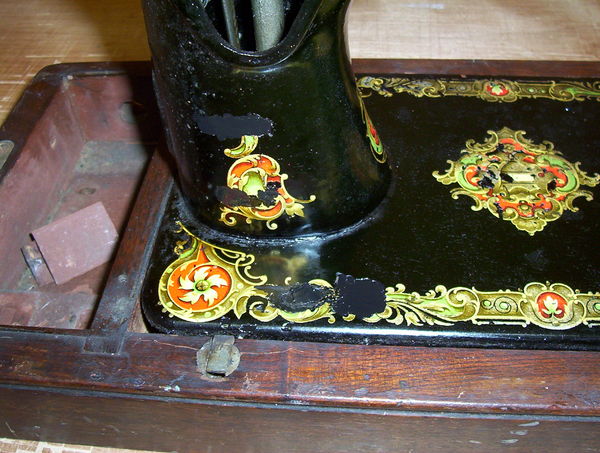

I set my machine back in its base again for this but you do not have to. You can see some of the road rash left behind from a loose motor on the pillar and the bed under it
[ATTACH=CONFIG]71208[/ATTACH]

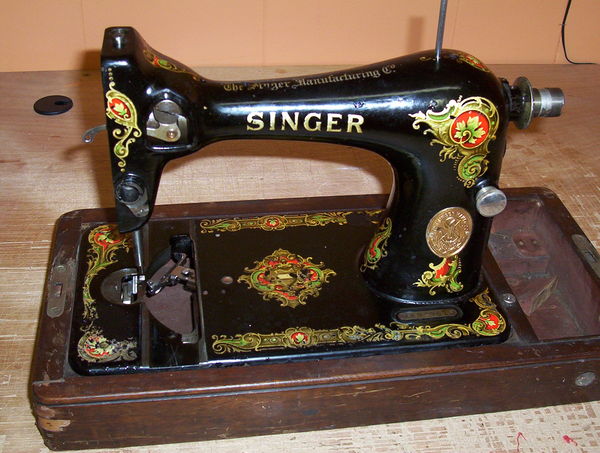

Looks good except the road rash but we are going to make it go bye bye!!
[ATTACH=CONFIG]71283[/ATTACH]

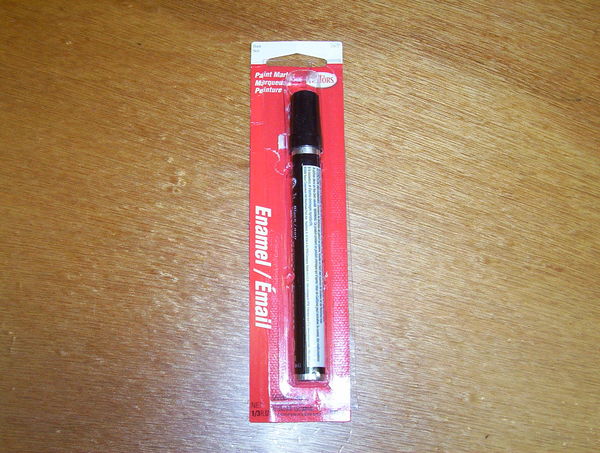

This is the Testors Paint Pen I picked up a Micheals for $2.49
[ATTACH=CONFIG]71284[/ATTACH]

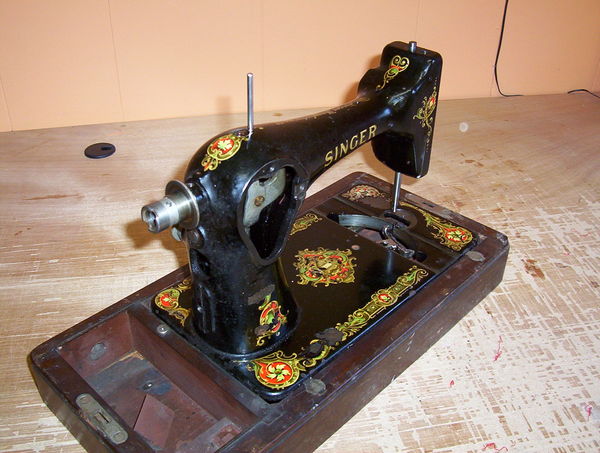

Fixing the major case of the road rash
[ATTACH=CONFIG]71285[/ATTACH]

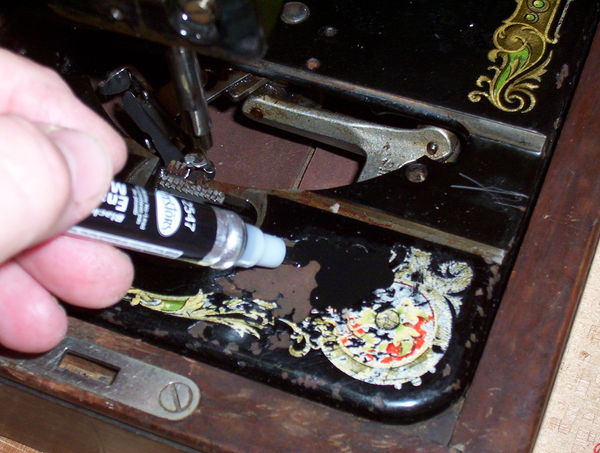

Right after I applied it but when it dries it matches really well
[ATTACH=CONFIG]71432[/ATTACH]

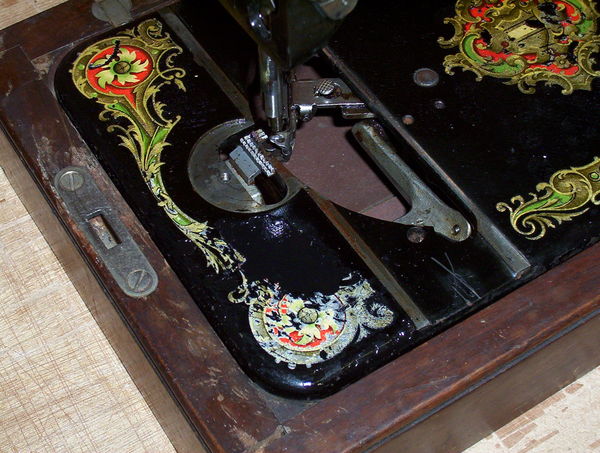

All fixed now just needs to dry!
[ATTACH=CONFIG]71433[/ATTACH]

After spending 30 minutes touching up everything and now I am going to let it dry for a couple of days before the final polish. Looks pretty good dont you think?!?!
[ATTACH=CONFIG]71434[/ATTACH]
Attached Thumbnails Click image for larger version

Name:	Attachment-71203.jpe
Views:	872
Size:	59.3 KB
ID:	71208   Click image for larger version

Name:	Attachment-71278.jpe
Views:	772
Size:	68.5 KB
ID:	71283   Click image for larger version

Name:	Attachment-71279.jpe
Views:	888
Size:	66.9 KB
ID:	71284   Click image for larger version

Name:	Attachment-71280.jpe
Views:	818
Size:	58.0 KB
ID:	71285   Click image for larger version

Name:	Attachment-71427.jpe
Views:	794
Size:	72.8 KB
ID:	71432

Click image for larger version

Name:	Attachment-71428.jpe
Views:	847
Size:	73.1 KB
ID:	71433   Click image for larger version

Name:	Attachment-71429.jpe
Views:	798
Size:	64.1 KB
ID:	71434
Lostn51 is offline
Old 05-23-2010, 11:17 AM
  #2
Senior Member

Join Date: Mar 2010
Location: Arkansas
Posts: 420
Default

Your machine looks so new now. I have an old Damascus that might clean up and be pretty if I would just get to it. Keep up the good work. Bobbie
grannysewer is offline
Old 05-23-2010, 12:10 PM
  #3
Banned
Thread Starter

Join Date: Oct 2009
Location: Bikini Bottom
Posts: 5,652
Default

Originally Posted by grannysewer
Your machine looks so new now. I have an old Damascus that might clean up and be pretty if I would just get to it. Keep up the good work. Bobbie

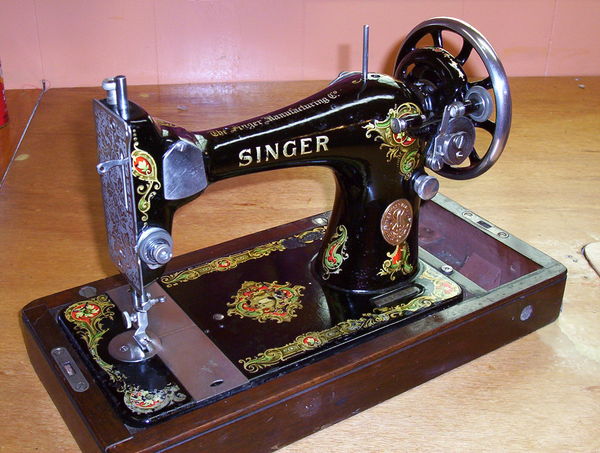

Ill jump a little ahead of myself here but this is what it looks like right now.........

Billy
Attached Thumbnails Click image for larger version

Name:	Attachment-72106.jpe
Views:	2046
Size:	66.9 KB
ID:	72111
Lostn51 is offline
Old 05-27-2010, 12:54 PM
  #4
Google Goddess

Join Date: May 2009
Location: Central Indiana (USA)
Posts: 30,181
Default

thanks for your tutorials
craftybear is offline
Old 05-30-2010, 11:56 AM
  #5
Junior Member

CanadianLoon's Avatar

Join Date: Oct 2009
Location: Ontario.Canada
Posts: 149
Default

I cant wait to try this.

Have you thought of publishing these instructions?
CanadianLoon is offline
Old 05-30-2010, 01:30 PM
  #6
Banned
Thread Starter

Join Date: Oct 2009
Location: Bikini Bottom
Posts: 5,652
Default

I am in the middle of doing that right now, along with some more of my research I have been doing. I am figuring it will be about the end of the year before I get to send anything to a publisher which I am in the middle of trying to find.

Billy
Lostn51 is offline
Old 05-31-2010, 08:03 AM
  #7
Power Poster

Join Date: Nov 2009
Location: Mableton, GA
Posts: 11,178
Default

Great stuff Billy. I'm still on the quest for something I can try all this on. Meanwhile, will one of your tutorials address cleaning the iron treadle mechanism? I might have asked this before, but, senior moments prevail! thanks.
Stitchnripper is offline
Old 05-31-2010, 02:44 PM
  #8
Banned
Thread Starter

Join Date: Oct 2009
Location: Bikini Bottom
Posts: 5,652
Default

Originally Posted by Stitchnripper
Great stuff Billy. I'm still on the quest for something I can try all this on. Meanwhile, will one of your tutorials address cleaning the iron treadle mechanism? I might have asked this before, but, senior moments prevail! thanks.
Yes I will as soon as I get a few more things out of the way here! I have a New Home Treadle that I am going to refurbish with the wooden pitman arm. I am going to have to make a new arm for it and all so it should cover anything you need to know.

Billy
Lostn51 is offline
Old 06-01-2010, 05:11 AM
  #9
Power Poster

Join Date: Nov 2009
Location: Mableton, GA
Posts: 11,178
Default

Thanks. Will keep checking back. All very interesting.
Stitchnripper is offline
Old 06-07-2010, 06:06 PM
  #10
EC
Senior Member

Join Date: Feb 2010
Location: MA
Posts: 302
Default

Sure hope I didn't miss the tute on putting all these little pieces back together........did you take pictures as you went along????
