Double Star Paper Pieced
09-30-2010, 05:06 PM
#1
Super Member
Thread Starter
Join Date: Aug 2007
Location: Ontario, Canada
Posts: 1,006
The first problem is that the pattern prints out too small. It is 6" with the seam allowances, and should be 6" without the seam allowances. So the first file is a pdf with the correct sizes.
The second problem is that the cutting directions are for the undersized block. The will work, but it is tight. So, Colour 1 - cut 1 - 6 1/2" square - Cut 4 - 4 3/4" squares, cut in half diagonally. Colour 2 - cut 4 - 3 1/4" squares. Background - Cut 4 - 3 1/2" squares - Cut 2 - 5 1/2" squares, cut diagonally twice.
The second problem is that the cutting directions are for the undersized block. The will work, but it is tight. So, Colour 1 - cut 1 - 6 1/2" square - Cut 4 - 4 3/4" squares, cut in half diagonally. Colour 2 - cut 4 - 3 1/4" squares. Background - Cut 4 - 3 1/2" squares - Cut 2 - 5 1/2" squares, cut diagonally twice.
fold on 1-2 and 3-4 and place on 1st fabric
[ATTACH=CONFIG]102164[/ATTACH]
2nd piece lined up
[ATTACH=CONFIG]102165[/ATTACH]
pdf file with correct sizes. Download to use.
[ATTACH=CONFIG]102305[/ATTACH]

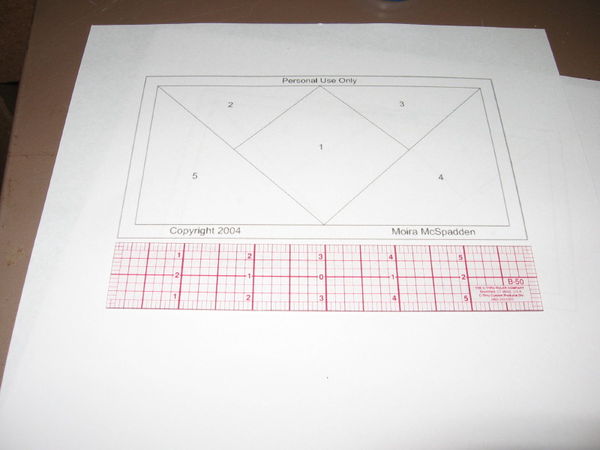

pattern prints out wrong size.
[ATTACH=CONFIG]102306[/ATTACH]

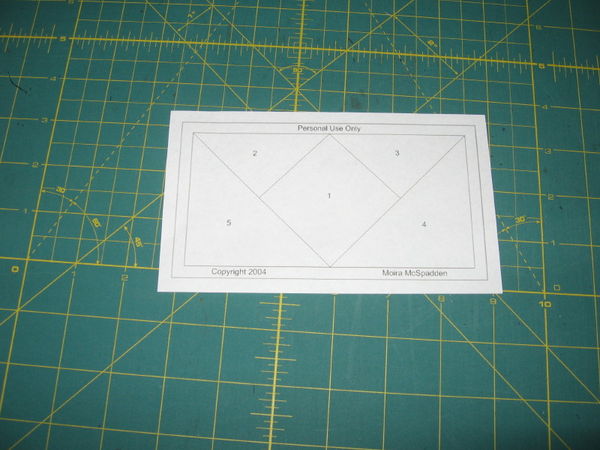

trim pattern leaving extra 1/4" all around.
[ATTACH=CONFIG]102307[/ATTACH]

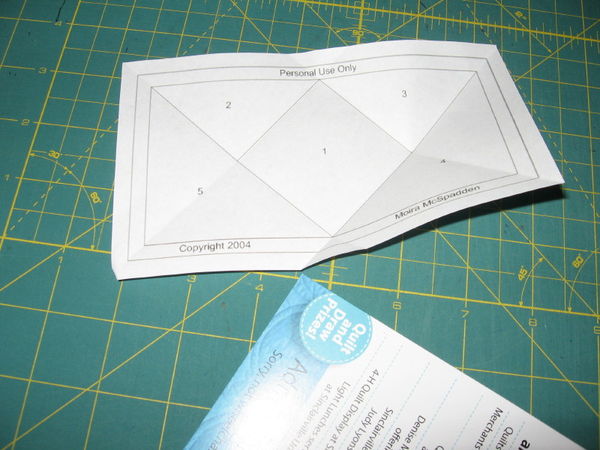

fold on each line.
[ATTACH=CONFIG]102309[/ATTACH]
Folded
[ATTACH=CONFIG]102386[/ATTACH]
I glue the first piece
[ATTACH=CONFIG]102388[/ATTACH]
1st piece face down
[ATTACH=CONFIG]102469[/ATTACH]
1st piece placed & glued
[ATTACH=CONFIG]102616[/ATTACH]
Check 2nd piece.
[ATTACH=CONFIG]102677[/ATTACH]
Pin & stitch (use short stitch) past line at least 1/4"
[ATTACH=CONFIG]103192[/ATTACH]
ready to trim before adding piece 4
[ATTACH=CONFIG]103291[/ATTACH]
put a pin through the outside corner to see it the piece is lined up right.
[ATTACH=CONFIG]103407[/ATTACH]
gently pull back to release stitches to stitching line.
[ATTACH=CONFIG]103544[/ATTACH]
fold back and trim
[ATTACH=CONFIG]103614[/ATTACH]
Check piece 4
[ATTACH=CONFIG]103615[/ATTACH]
09-30-2010, 06:44 PM
#2
Super Member
Thread Starter
Join Date: Aug 2007
Location: Ontario, Canada
Posts: 1,006
Last two pictures.
Thanks for letting me know that the pattern printed our OK.
Remember to choose no scaling when printing.
Thanks for letting me know that the pattern printed our OK.
Remember to choose no scaling when printing.
Untrimmed
[ATTACH=CONFIG]104099[/ATTACH]
Trimmed
[ATTACH=CONFIG]104100[/ATTACH]
10-01-2010, 12:48 PM
#5
Member
Join Date: Mar 2010
Location: Idaho
Posts: 81
Originally Posted by LeeJay
I have downloaded the PP pattern you give, and it prints out at 5 3/4 x 2 3/4. How can I get the accurate 6x3 pattern?
LeeJay
LeeJay
10-01-2010, 12:54 PM
#6
Super Member
Join Date: Feb 2010
Location: Maryland
Posts: 3,586
Originally Posted by LeeJay
I have downloaded the PP pattern you give, and it prints out at 5 3/4 x 2 3/4. How can I get the accurate 6x3 pattern?
LeeJay
LeeJay
ok, I see you fixed it. :thumbup:
10-01-2010, 01:08 PM
#7
Senior Member
Join Date: Jun 2010
Location: Connecticut River, northern NH
Posts: 914
When you go to print the PDF, you will have a percentage showing of 100 (I work on a Mac so I'm not sure what PCs have). Just slightly increase the percentage... try 110 percent and print. Measure printout and if it is still too small, increase the percentage a little more until what prints out is the size you want it to be.
10-02-2010, 06:30 PM
#10
Super Member
Join Date: Apr 2010
Location: Galveston Texas
Posts: 1,596
When I was making a civil war quilt, I changed paper. Andthe new paper (known brand) printed all my blocks 1/4 to 1/2 inches larger. After talking to EQ and others, I discovered it was the paper. I bought a differnet brand and it worked fine. The paper looked the same as the other but just worked better in my printer.
