grant15clone

Steve, I would have loved it if you would have cleaned this Elgin. It was a complete disaster when I got it and a real challenge. Here is the results of my latest project, The Elgin.
~Grant~

Front before and after.
[ATTACH=CONFIG]519008[/ATTACH]

Back before and after.
[ATTACH=CONFIG]519009[/ATTACH]

Bobbin Winder before and after.
[ATTACH=CONFIG]519015[/ATTACH]

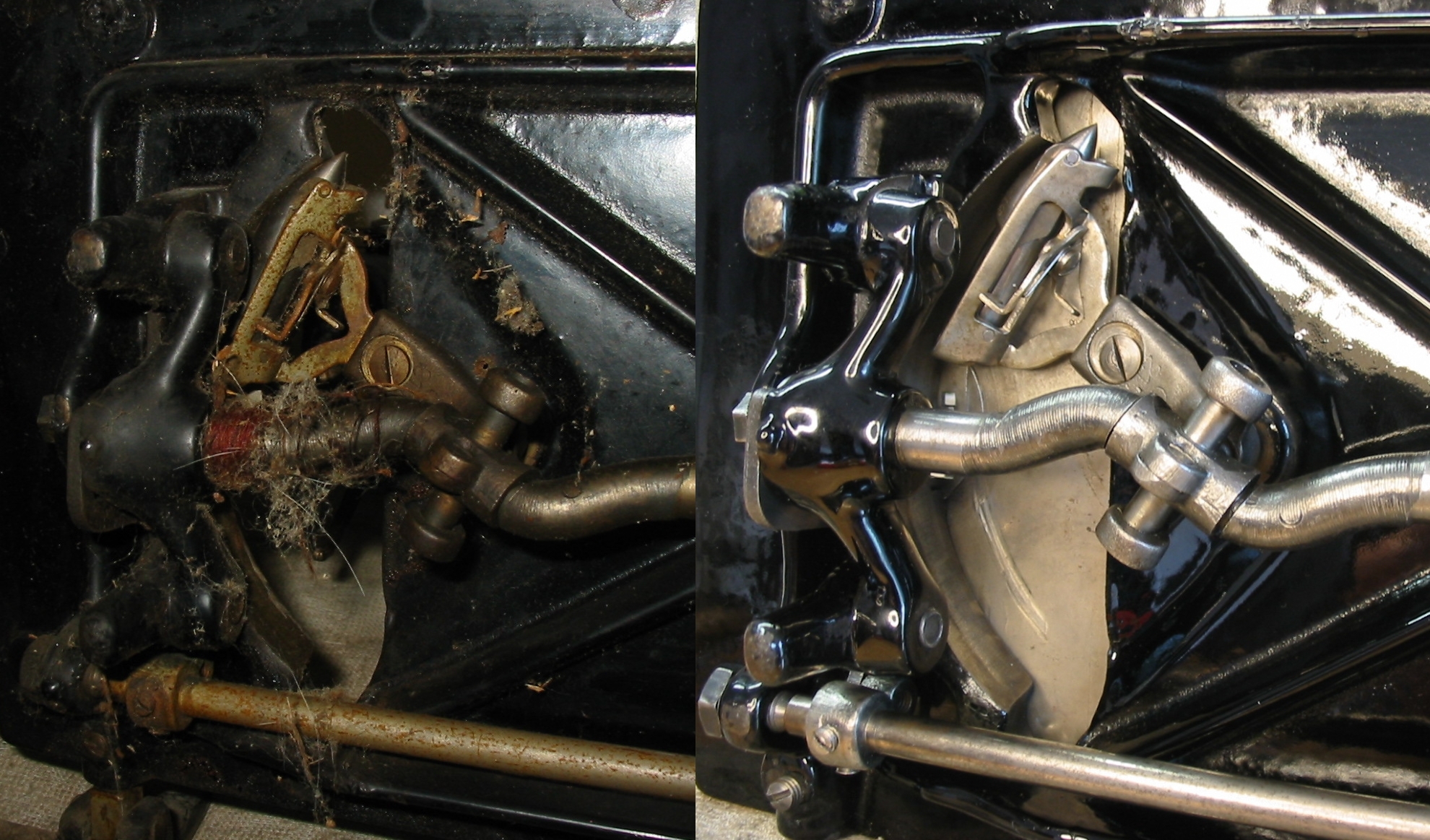

Hook area front, before and after.
[ATTACH=CONFIG]519011[/ATTACH]

Hook area back, before and after.
[ATTACH=CONFIG]519012[/ATTACH]

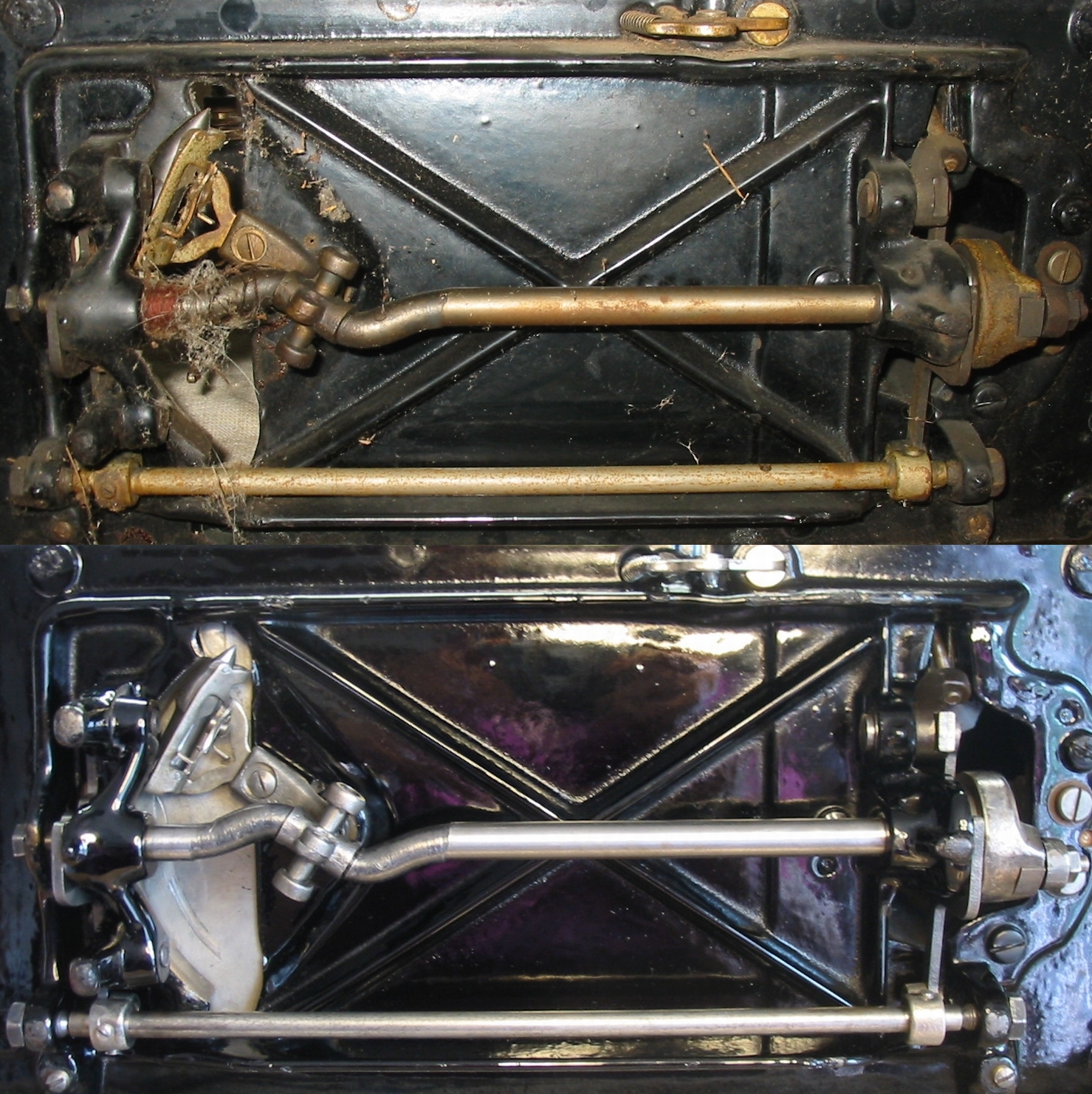

Bottom before and after.
[ATTACH=CONFIG]519013[/ATTACH]

Handwheel before and after.
[ATTACH=CONFIG]519014[/ATTACH]

SteveH

fantastic!!

ArchaicArcane

I can probably send you what seems like a train container's worth!

Rodney

I need to look in this thread more often. Grant you do some incredible work. That Elgin looks great! You really know how to raise the bar on cleaning these old machines up. Interesting drive train on that Elgin too.
Steve be careful what you wish for.
Rodney

19cats

I can see it now -- hundreds of derelict machines jumping out at your vehicle as you cross the country. The word is out, Steve.

grant15clone

Thank you Rodney. You must be talking about the universal type joint under the machine. Yes, it is. I enjoy seeing what the engineers did to try and do it a different or better way.
~G~

SewExtremeSeams

Great looking machines Grant. What a transformation.

J Miller

Grant,

First, your machine was probably made by The FREE Sewing Machine Co. The underside drive is identical to what my FREE Long Bobbin Rotary has.
It is without a doubt the quietest and smoothest VS machine I've had the pleasure to use.

Second, I so want to learn your secret. You made a silk purse out of a sows ear. Anyone who likes vintage machines would be proud to use it.

Joe

sews

Wow. AMAZING transformation!! How long did that take?

grant15clone

Linda, Joe, and Sabine, thank you.

Joe, I have no secrets. I disassemble as much as reasonably possible, clean, adjust and detail everything, and put it back together. Simple, right? Also, thank you for the info. I was pretty sure it was a Free and had posted that on the Sit A Spell thread here. But it is nice to get conformation from someone I trust. Did you know,... that the slideplates, shuttle, and the bobbin are all interchangeable with Singer 27,127, 28, 128 machines? Mine was missing both of the slideplates. I had a parts machine Singer 27 here and tried them. They fit like a charm. I am sure that you can imagine my relief.

Sabine, It took me about five days. One whole day was spent on the handwheel alone. I was so glad when that was done.
~G~
