Okay since there has been all this interest in vintage machines there is something that really needs to be addressed.....The electrical parts of the machine!!

I am doing the tutes on cleaning and rewiring of your machines and the machine that I am using is my 1926 Singer 128. Well if I had plugged it into the wall before checking the electrics I would have caught the machine on FIRE or SHOCKED myself on it. Every connection was loose and there was some wires touching because of that and when I hit the Kneebar I would have felt it hit me like a brick!!!!

Always thoroughly check the electrical out on the machine before plugging it in the wall. Check for cracks in the wiring or exposed areas, loose connections and so forth. If you have to you can take it to a professional and have him look at it.

Your life is not worth being careless!!

Here are some photos showing where the connections were so loose it would have been fatal to me and the machine!

Billy

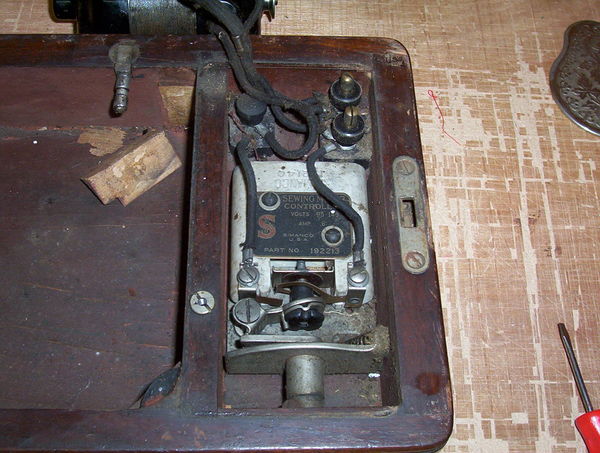

after taking the cover off to see the wiring
[ATTACH=CONFIG]55241[/ATTACH]

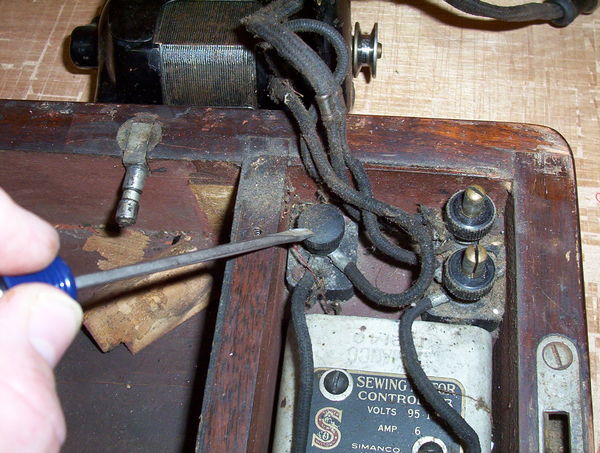

The first loose connection
[ATTACH=CONFIG]55310[/ATTACH]

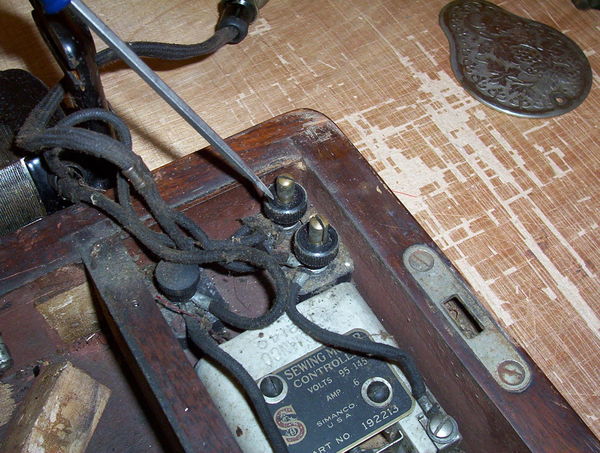

the lugs that the cord plugs into. These were so loose and the wires were touching other wires that would have shocked ar caught on fire!!
[ATTACH=CONFIG]55382[/ATTACH]

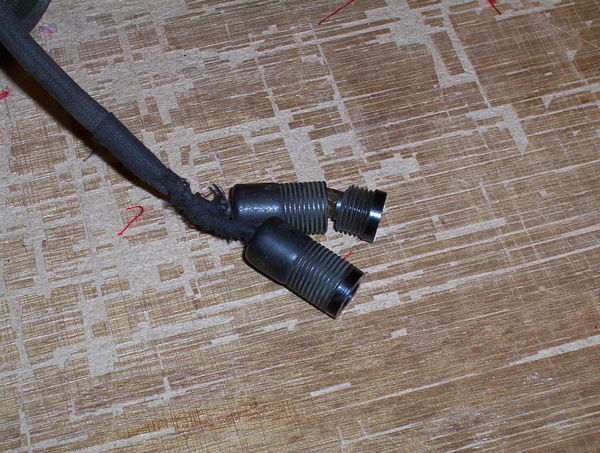

The female connectors that plugged into the lugs
[ATTACH=CONFIG]55383[/ATTACH]

After making sure everything was secure and the wiring was in order I plugged it in and turned the light on and ran the mottor with the kneebar!!!
[ATTACH=CONFIG]55384[/ATTACH]
Attached Thumbnails Click image for larger version

Name:	Attachment-55241.jpe
Views:	647
Size:	65.5 KB
ID:	55241   Click image for larger version

Name:	Attachment-55310.jpe
Views:	569
Size:	72.5 KB
ID:	55310   Click image for larger version

Name:	Attachment-55382.jpe
Views:	617
Size:	78.7 KB
ID:	55382   Click image for larger version

Name:	Attachment-55383.jpe
Views:	549
Size:	82.9 KB
ID:	55383   Click image for larger version

Name:	Attachment-55384.jpe
Views:	624
Size:	41.6 KB
ID:	55384

Lostn51 is offline
Old 05-13-2010, 09:06 PM
  #2
Super Member

raptureready's Avatar

Join Date: Feb 2010
Location: Illinois
Posts: 5,142
Default

Hey Billy, where were you years ago when I plugged in that machine and sparks flew everywhere???? LOL No damage but to my nerves. Lesson learned quickly.
raptureready is offline
Old 05-13-2010, 09:48 PM
  #3
Super Member

SewExtremeSeams's Avatar

Join Date: May 2009
Posts: 7,741
Default

Good advice! I will post of duzzy on a Singer portable I pick up.
SewExtremeSeams is offline
Old 05-14-2010, 01:51 AM
  #4
Super Member

Join Date: Jan 2010
Location: Upstate New York
Posts: 2,004
Default

I need to fix the wiring on my 201-2. Thanks Billy!
no1jan is offline
Old 05-14-2010, 05:58 AM
  #5
Super Member

Deborah12687's Avatar

Join Date: Feb 2010
Location: Minnesota
Posts: 1,098
Default

Billy,
My husband had to lenthin the wire for my foot petal as it was to short. When he striped the wire he found asbestos coating on the wires. Now he want to change all the wiring in the machine as the asbestos is cracked and flaking and the outer coating of the wires isn't the best. By changing the wires will it devalue the machine?
Deborah12687 is offline
Old 05-14-2010, 06:10 AM
  #6
Banned
Thread Starter

Join Date: Oct 2009
Location: Bikini Bottom
Posts: 5,652
Default

Originally Posted by Deborah Rae
Billy,
My husband had to lenthin the wire for my foot petal as it was to short. When he striped the wire he found asbestos coating on the wires. Now he want to change all the wiring in the machine as the asbestos is cracked and flaking and the outer coating of the wires isn't the best. By changing the wires will it devalue the machine?
Not if you plan on wanting to use it. You can find the cloth covered wiring at lamp shops and it will not have asbestos in the insulation. If you want to maintain the integrity of the machine I would go that route.

My cousin restores Fans from the teens and twenties and she gets her cloth wiring from a lamp supplier on the net. I will call her if I remember and ask her what site she goes to, but if you Google it you should find it no problem.

Billy
Lostn51 is offline
Old 05-14-2010, 07:13 AM
  #7
Super Member

Deborah12687's Avatar

Join Date: Feb 2010
Location: Minnesota
Posts: 1,098
Default

Thank you for the information Billy
Deborah12687 is offline
Old 05-14-2010, 07:25 AM
  #8
Super Member

wvdek's Avatar

Join Date: Jul 2009
Location: A million dollar view!
Posts: 8,830
Default

Glad your ok Billy. Course that comes with experience, doesn't it? :lol:
wvdek is offline
Old 05-14-2010, 07:45 AM
  #9
Banned
Thread Starter

Join Date: Oct 2009
Location: Bikini Bottom
Posts: 5,652
Default

Originally Posted by wvdek
Glad your ok Billy. Course that comes with experience, doesn't it? :lol:
Fortunately I never had that happen to me but I have knocked the living stew out of me when I have grounded myself out when I was welding.

Hurted like hell but it was funny!!!

Billy
Lostn51 is offline
Old 05-14-2010, 07:49 AM
  #10
Power Poster

Join Date: Nov 2007
Location: SW Iowa
Posts: 32,855
Default

That is scary. You are so right......safety first. Thanks for the info.
