Ok, here are the quilt frame pics and dimensions/materials
01-17-2011, 01:53 PM
#1
Junior Member
Thread Starter
Join Date: Feb 2008
Location: northern Ontario, Canada
Posts: 233
(a-hem...DH says "patent pending" LOL )
Starting a new thread, this will have a lot of pics. Hope that's ok. Hopefully for those capable of building it, the dimensions and pics will be adequate. There are a few that are blurry. Sorry.
I'll start with the "trucks" that the quilt and the Flynn frame ride around on.
Starting with moving parts...the truck that rides the large rails, and move the quilt and its frame from side to side.
Two, one per side. Requires:
-9/16 aluminum, 4 pieces at 29 (or whatever you decide the width of your overall frame will be)(this was left over from the aluminum railings on our outdoor steps)
-1 aluminum, 4 pieces at 7 1/2, notched out 1 1/2 for wheels
-16 brass wheels (includes the 8 needed for the second trucks), 1 3/8 diameter, 5/8 thick, center bored out for a 5/8 bearing
-16 5/8 bearings
Starting a new thread, this will have a lot of pics. Hope that's ok. Hopefully for those capable of building it, the dimensions and pics will be adequate. There are a few that are blurry. Sorry.
I'll start with the "trucks" that the quilt and the Flynn frame ride around on.
Starting with moving parts...the truck that rides the large rails, and move the quilt and its frame from side to side.
Two, one per side. Requires:
-9/16 aluminum, 4 pieces at 29 (or whatever you decide the width of your overall frame will be)(this was left over from the aluminum railings on our outdoor steps)
-1 aluminum, 4 pieces at 7 1/2, notched out 1 1/2 for wheels
-16 brass wheels (includes the 8 needed for the second trucks), 1 3/8 diameter, 5/8 thick, center bored out for a 5/8 bearing
-16 5/8 bearings
large truck
[ATTACH=CONFIG]162465[/ATTACH]

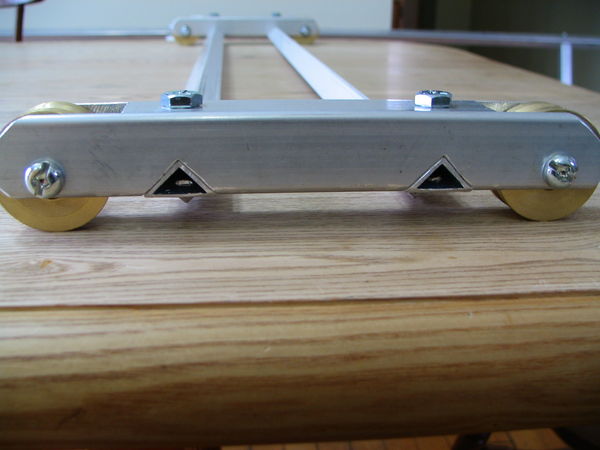

large truck end view
[ATTACH=CONFIG]162466[/ATTACH]
01-17-2011, 01:58 PM
#3
Junior Member
Thread Starter
Join Date: Feb 2008
Location: northern Ontario, Canada
Posts: 233
second truck (2 of them), that rides the rails of the first truck
- 18 x 4 wood thats about 1/4 thick, or a suitable metal,
wheels and bearings listed above already
- 18 x 4 wood thats about 1/4 thick, or a suitable metal,
wheels and bearings listed above already
smaller truck side view
[ATTACH=CONFIG]162467[/ATTACH]
smaller truck upside down
[ATTACH=CONFIG]162468[/ATTACH]

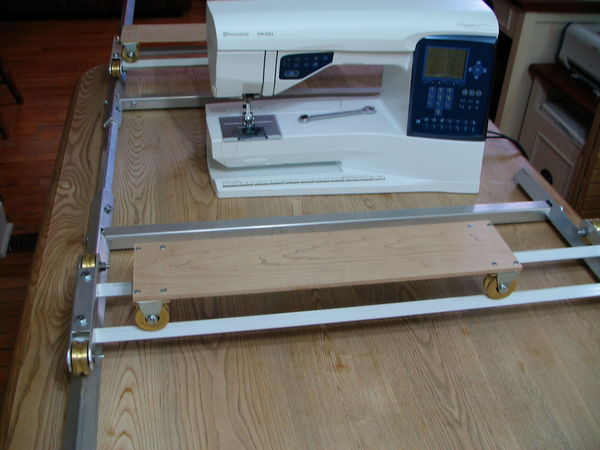

small truck sitting on large truck
[ATTACH=CONFIG]162469[/ATTACH]
01-17-2011, 02:01 PM
#4
Junior Member
Thread Starter
Join Date: Feb 2008
Location: northern Ontario, Canada
Posts: 233
frame
legs (one per side, or two if you like, mine with one is good support) 1 aluminum 27 long, notched for joining to the frame, with a 3/4 piece inserted inside to adjust leg height
legs (one per side, or two if you like, mine with one is good support) 1 aluminum 27 long, notched for joining to the frame, with a 3/4 piece inserted inside to adjust leg height
legs
[ATTACH=CONFIG]162471[/ATTACH]
legs notched end to attach at top
[ATTACH=CONFIG]162472[/ATTACH]

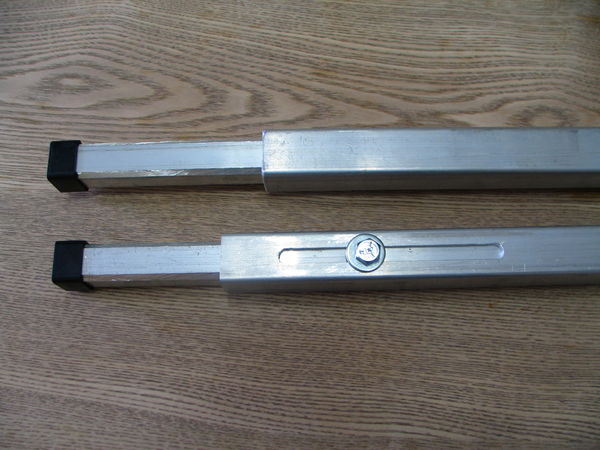

legs, floor end, adjustable
[ATTACH=CONFIG]162473[/ATTACH]
01-17-2011, 02:04 PM
#5
Junior Member
Thread Starter
Join Date: Feb 2008
Location: northern Ontario, Canada
Posts: 233
side rails (that the large truck rides on, inner ends rest on your table either side of your machine, other end on legs) 4 pieces of 90 long, 1 aluminum. You could have longer or shorter, depending on where you set up and how much space you have either side of the machine.
rail separators/ends - 1 aluminum, 27 1/2 long (or what you decide your width is), 6 pieces
end stops (so your trucks dont zing your quilt frame and quilt right off the end of the frame) 1 aluminum, 2 long, notched out on three sides at 1
rail separators/ends - 1 aluminum, 27 1/2 long (or what you decide your width is), 6 pieces
end stops (so your trucks dont zing your quilt frame and quilt right off the end of the frame) 1 aluminum, 2 long, notched out on three sides at 1
part of one side, with separators
[ATTACH=CONFIG]162474[/ATTACH]
other end, same one
[ATTACH=CONFIG]162475[/ATTACH]

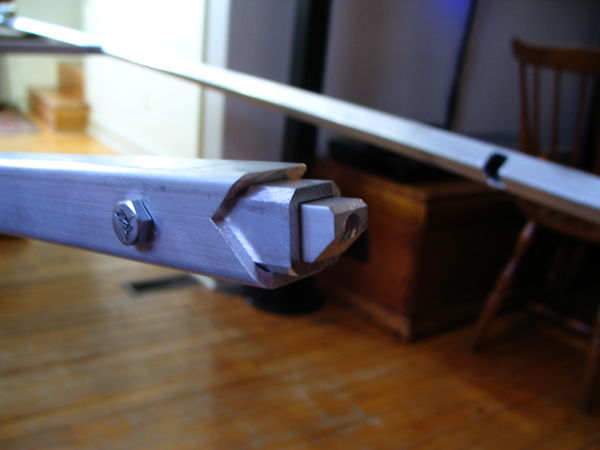

end view of one side, with stop visible in the middle of the end
[ATTACH=CONFIG]162476[/ATTACH]
