Thread: Walker Caddy Tutorial - Written Instructions Added

  1. #1
    Super Member BettyGee's Avatar
    Join Date
    Oct 2010
    Location
    Colorado
    Posts
    2,289
    I have never done anything like this before so I sure hope you will keep that in mind if you use this tutorial.

    Front of caddy - 1 piece 18" x 22"
    Back of caddy - 1 piece 18" x 22"
    Lining - 1 piece 18" x 22" (muslin,solid, or compliment to main fabric)
    Batting - 1 piece 19" x 23"
    Pellon 808 Craft Fuse - 1 piece 18" x 22"
    1 pair athletic shoe laces, 38" long or twill tape will also work.
    Steam-A-Seam 1/2" tape
    40" of double fold extra wide bias tape

    Cell Phone Pouch (optional)
    Front of pouch - 1 piece 6" x 4 1/2"
    Back of pouch - 1 piece 6" x 4 1/2"
    Lining - 1 piece 6" x 4 1/2"
    Batting - 1 piece 6 1/4" x 4 3/4"

    Measurements for the cell phone pouch are based on my cell phone which is very small. You may wish to adjust the size of the pouch to accommodate the larger cell phones of today.

    Form your quilt sandwich with front, batting and back. Quilt as desired. I chose to outline the emblems in the pattern. Trim excess batting. Put this piece aside.

    If making the cell phone pouch, form a sandwich of material that matches the back of the caddy, then the batting and finally the fabric that matches the lining of the caddy. Quilt as desired. I chose to crosshatch this small piece.

    Replace walking foot with 1/4 inch quilting foot for remainder of project.

    Fuse Pellon 808 Craft Fuse to the back fabric of the caddy. Put this piece aside.

    Make a sandwich of the quilted cell phone pouch and the 6" x 4 1/2" piece that matches the fabric you used for the front of the caddy by placing it with right side against the pouch. Stitch 1/4" on three sides of the pouch, leaving a short side open. Clip corners, trim seams close to stitching. Turn pouch inside out. Poke out corners so you have a little pouch with the top open. Trim open end of pouch to make nice smooth edges. Secure Steam-A-Seam tape to the inside of tope of the pouch. Fold down the top of the pouch 1/2" to the inside of the pouch and finger press. Remove paper from Steam-A-Seam exposing the fusible surface and press. You will have a small pouch with an opening on the top. You may top stitch the edge of the opening if desired for additional stability.

    Place the completed cell phone pouch 1 and 1/2" down and in the center of the caddy back, the fabric fused to the Pellon, pin in place. Stitch pouch to caddy back by sewing 1/4" on three sides of the pouch, leaving top open. Stitch only the back of the pouch opening to the back of the caddy. The pouch is now secure to the back of the caddy.

    Take one shoe lace and fold in half. Pin shoe lace 1" down from the top of the caddy front, on the seam line, with the laces pointing toward the center of the caddy. Repeat with the other shoe lace on the opposite side of the caddy front.

    Lay the lining on top of the caddy front, you will have a sandwich of the quilted caddy front, the shoe laces pinned in place on either side of the top and the caddy lining. The fabric should be right sides together.

    Starting at the top right, just above the shoe lace, begin stitching 1/4" seam and back stitch over the shoe lace to add strength. Continue stitching down the right side, back stitch at the corner to add strength. Continue stitching across the bottom of the caddy to the left corner, again back stitching to give it strength and complete seam to the top left. Back Stitch over the shoe lace to give it strength.

    Clip corners, trim as close to seam as possible. Turn caddy inside out, poking out the corners. Finger press all around the sewn edges to flatten out the caddy. Use a ruler and rotary cutter to make the top edge even and smooth.

    Pin the bias tape to the inside of the caddy opening and stitch in place. Fold the bias tape over the raw edge and top stitch in place on the right side of the caddy. Top stitch the caddy 1/4" from the tope right edge, just below the bias tape, to the left top edge just below the bias tape.

    Decide how many compartments you want in the caddy. I chose to make one narrow compartment and one larger. Stitch from the bottom of the caddy to the top of the caddy just below the bias tape, back stitch at the top to give it added strength.

    I know that this includes things that you know as experienced folks, but I tried to write it for the person who may be just starting out.

    If I haven't totally confused you beyond all reason you should have a fully functional walker caddy with a cell phone pouch.

    Enjoy,
    Betty

    The Adventure Begins

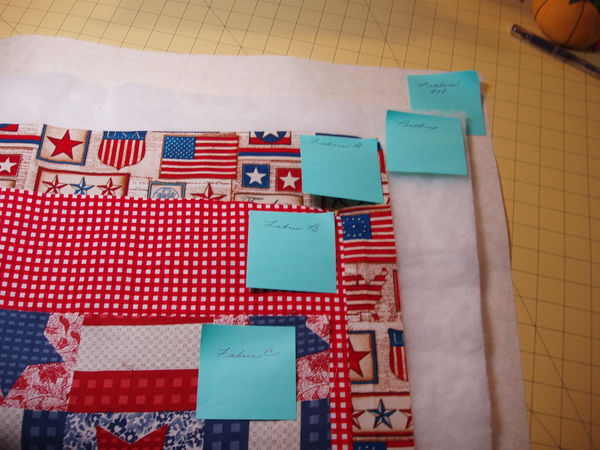

    The fabric
    Name:  Attachment-221372.jpe
Views: 10738
Size:  60.7 KB

    My Quilt Sandwich
    Name:  Attachment-221373.jpe
Views: 10672
Size:  80.9 KB

    Quilting - The fun part
    Name:  Attachment-221374.jpe
Views: 10630
Size:  51.7 KB

    Fusing the Pellon to the back
    Name:  Attachment-221376.jpe
Views: 10638
Size:  46.6 KB

    Quilted Front on Caddy Back
    Name:  Attachment-221378.jpe
Views: 10668
Size:  96.6 KB

    The cell phone pouch pieces
    Name:  Attachment-221379.jpe
Views: 10665
Size:  43.6 KB

    The cell pouch quilt sandwich
    Name:  Attachment-221381.jpe
Views: 10621
Size:  33.7 KB

    The quilted front and back of pouch
    Name:  Attachment-221382.jpe
Views: 10629
Size:  51.4 KB

    Ta Da you have the cell phone pouch
    Name:  Attachment-221383.jpe
Views: 10600
Size:  32.5 KB

    Now To Close The Top Neatly
    Name:  Attachment-221384.jpe
Views: 10585
Size:  30.7 KB

    Ain't It Cute?
    Name:  Attachment-221386.jpe
Views: 10595
Size:  51.5 KB

    Attach The Pouch To The Back
    Name:  Attachment-221387.jpe
Views: 10623
Size:  82.2 KB

    Quilted Front Sewn To Back
    Name:  Attachment-221391.jpe
Views: 10593
Size:  90.0 KB

    Front of Caddy
    Name:  Attachment-221392.jpe
Views: 10580
Size:  66.5 KB

    Back of the caddy w/cell phone pouch
    Name:  Attachment-221394.jpe
Views: 10559
Size:  70.4 KB

    Bias Tape Attached and Compartments Made
    Name:  Attachment-221396.jpe
Views: 10555
Size:  53.0 KB

    Cell Phone Pouch
    Name:  Attachment-221399.jpe
Views: 10562
Size:  76.6 KB

    Almost Finished!
    Name:  Attachment-221400.jpe
Views: 10506
Size:  56.8 KB

    I'm Very Happy
    Name:  Attachment-221401.jpe
Views: 10499
Size:  69.2 KB

    Hope You Have Enjoyed My Journey
    Name:  Attachment-221402.jpe
Views: 10514
Size:  89.7 KB

  2. #2
    Senior Member
    Join Date
    Jul 2010
    Location
    Crystal Coast of North Carolina
    Posts
    405
    Very nice tute! I'll have to try this.

  3. #3
    Super Member OHSue's Avatar
    Join Date
    May 2009
    Location
    Ohio
    Posts
    1,414
    very good tute, I especially liked the extra phone pocket on there.

  4. #4
    Power Poster Sadiemae's Avatar
    Join Date
    Oct 2009
    Location
    Idaho
    Posts
    11,450
    Blog Entries
    20
    I cannot download it, so could you give the dimensions of the pieces?

  5. #5
    Super Member
    Join Date
    Oct 2009
    Posts
    5,837
    Blog Entries
    1
    Lucky ME! i got my fabrics for 2 of them this week! i will strt it today! your the best!!


    dang..i can't open it either!

  6. #6
    Senior Member
    Join Date
    Mar 2010
    Location
    NEW YORK
    Posts
    371
    Blog Entries
    2
    Wow what a great tut Thank you Can you possibly give the measurements for this and the size of the cell phone patch Thanks Frances

  7. #7
    Member sunflowerpeg's Avatar
    Join Date
    Feb 2011
    Location
    colorado
    Posts
    26
    i LOVE this.

    do have one suggestion....any extra pockets/pouches should be a SOLID color. know this from experience from the one i made for my mother.

  8. #8
    Super Member GailG's Avatar
    Join Date
    May 2008
    Location
    Louisiana
    Posts
    6,763
    Quote Originally Posted by watterstide
    Lucky ME! i got my fabrics for 2 of them this week! i will strt it today! your the best!!


    dang..i can't open it either!
    I can't open it either. I do want to make these for Christmas with festive fabrics.

  9. #9
    Super Member lorimax5859's Avatar
    Join Date
    Apr 2011
    Location
    Arizona
    Posts
    2,382
    Blog Entries
    6
    Awsome! Thanks so much for sharing.

  10. #10
    Super Member BettyGee's Avatar
    Join Date
    Oct 2010
    Location
    Colorado
    Posts
    2,289
    I am going to type out the info in the main topic area. So sorry that the attachment didn't open for you.

    Thank you for your kind words. I had fun doing the tute and am tickled with the way the caddy worked out.

    Check in a few for the directions I used.

    Betty

  11. #11
    Super Member BettyGee's Avatar
    Join Date
    Oct 2010
    Location
    Colorado
    Posts
    2,289
    Front of caddy - 1 piece 18" x 22"
    Back of caddy - 1 piece 18" x 22"
    Lining - 1 piece 18" x 22" (muslin,solid, or compliment to main fabric)
    Batting - 1 piece 19" x 23"
    Pellon 808 Craft Fuse - 1 piece 18" x 22"
    1 pair athletic shoe laces, 38" long or twill tape will also work.
    Steam-A-Seam 1/2" tape
    40" of double fold extra wide bias tape

    Cell Phone Pouch (optional)
    Front of pouch - 1 piece 6" x 4 1/2"
    Back of pouch - 1 piece 6" x 4 1/2"
    Lining - 1 piece 6" x 4 1/2"
    Batting - 1 piece 6 1/4" x 4 3/4"

    Measurements for the cell phone pouch are based on my cell phone which is very small. You may wish to adjust the size of the pouch to accommodate the larger cell phones of today.

    Form your quilt sandwich with front, batting and back. Quilt as desired. I chose to outline the emblems in the pattern. Trim excess batting. Put this piece aside.

    If making the cell phone pouch, form a sandwich of material that matches the back of the caddy, then the batting and finally the fabric that matches the lining of the caddy. Quilt as desired. I chose to crosshatch this small piece.

    Replace walking foot with 1/4 inch quilting foot for remainder of project.

    Fuse Pellon 808 Craft Fuse to the back fabric of the caddy. Put this piece aside.

    Make a sandwich of the quilted cell phone pouch and the 6" x 4 1/2" piece that matches the fabric you used for the front of the caddy by placing it with right side against the pouch. Stitch 1/4" on three sides of the pouch, leaving a short side open. Clip corners, trim seams close to stitching. Turn pouch inside out. Poke out corners so you have a little pouch with the top open. Trim open end of pouch to make nice smooth edges. Secure Steam-A-Seam tape to the inside of tope of the pouch. Fold down the top of the pouch 1/2" to the inside of the pouch and finger press. Remove paper from Steam-A-Seam exposing the fusible surface and press. You will have a small pouch with an opening on the top. You may top stitch the edge of the opening if desired for additional stability.

    Place the completed cell phone pouch 1 and 1/2" down and in the center of the caddy back, the fabric fused to the Pellon, pin in place. Stitch pouch to caddy back by sewing 1/4" on three sides of the pouch, leaving top open. Stitch only the back of the pouch opening to the back of the caddy. The pouch is now secure to the back of the caddy.

    Take one shoe lace and fold in half. Pin shoe lace 1" down from the top of the caddy front, on the seam line, with the laces pointing toward the center of the caddy. Repeat with the other shoe lace on the opposite side of the caddy front.

    Lay the lining on top of the caddy front, you will have a sandwich of the quilted caddy front, the shoe laces pinned in place on either side of the top and the caddy lining. The fabric should be right sides together.

    Starting at the top right, just above the shoe lace, begin stitching 1/4" seam and back stitch over the shoe lace to add strength. Continue stitching down the right side, back stitch at the corner to add strength. Continue stitching across the bottom of the caddy to the left corner, again back stitching to give it strength and complete seam to the top left. Back Stitch over the shoe lace to give it strength.

    Clip corners, trim as close to seam as possible. Turn caddy inside out, poking out the corners. Finger press all around the sewn edges to flatten out the caddy. Use a ruler and rotary cutter to make the top edge even and smooth.

    Pin the bias tape to the inside of the caddy opening and stitch in place. Fold the bias tape over the raw edge and top stitch in place on the right side of the caddy. Top stitch the caddy 1/4" from the tope right edge, just below the bias tape, to the left top edge just below the bias tape.

    Decide how many compartments you want in the caddy. I chose to make one narrow compartment and one larger. Stitch from the bottom of the caddy to the top of the caddy just below the bias tape, back stitch at the top to give it added strength.

    I know that this includes things that you know as experienced folks, but I tried to write it for the person who may be just starting out.

    If I haven't totally confused you beyond all reason you should have a fully functional walker caddy with a cell phone pouch.

    Enjoy,
    Betty

  12. #12
    Super Member donnajean's Avatar
    Join Date
    Aug 2007
    Location
    Holland, PA
    Posts
    4,321
    Do you have a picture to show what it will look like?

  13. #13
    Power Poster amma's Avatar
    Join Date
    Jul 2007
    Location
    Out searching for some sunshine :-)
    Posts
    59,088
    Blog Entries
    1
    Here is the link to the picture tutorial that goes along with these directions :D:D:D

    http://www.quiltingboard.com/t-135414-1.htm

  14. #14
    Super Member BettyGee's Avatar
    Join Date
    Oct 2010
    Location
    Colorado
    Posts
    2,289
    Quote Originally Posted by amma
    Here is the link to the picture tutorial that goes along with these directions :D:D:D

    http://www.quiltingboard.com/t-135414-1.htm
    Many thanks. I guess I really messed up all the way around.

  15. #15
    Super Member GailG's Avatar
    Join Date
    May 2008
    Location
    Louisiana
    Posts
    6,763
    Thanks for adding the directions. I was thinking, instead of a pouch for a cell phone, perhaps one for eyeglasses.

  16. #16
    Senior Member Angellight's Avatar
    Join Date
    Jan 2010
    Location
    Colorful Colorado
    Posts
    338
    This is a great tutorial!
    I have made one from other instructions that has used fabric folded in 1/2 to make larger pockets along the bottom.
    For those who have made the BowTucks bag, - Think the inner pockets... For those who have not use the width of the bag for your Width of Fabric for the pockets, and double it for the height. So on this bag, use a 16"x22" piece of fabric (or whatever size you think will fit the bag). Fold it in half and press. Line the raw edges up with the bottomand sides of the bag. Sew it to the sides of the bag front or back (you can do it on both sides to add more pockets) after you have done your quilting and sew either 2 or 3 seams from the top of your pockets to the bottom of the bag and pockets.
    Finish your bag as described by this tutorial.

    Happy quilting!
    Susan

  17. #17
    Power Poster Sadiemae's Avatar
    Join Date
    Oct 2009
    Location
    Idaho
    Posts
    11,450
    Blog Entries
    20
    Quote Originally Posted by BettyGee
    Quote Originally Posted by amma
    Here is the link to the picture tutorial that goes along with these directions :D:D:D

    http://www.quiltingboard.com/t-135414-1.htm
    Many thanks. I guess I really messed up all the way around.
    You didn't mess up! You did great! I just thought it was in Word and I don't have Word on my computer.

  18. #18
    Power Poster amma's Avatar
    Join Date
    Jul 2007
    Location
    Out searching for some sunshine :-)
    Posts
    59,088
    Blog Entries
    1
    you didn't mess up :D besides, what are friends for? :D:D:D

  19. #19
    Super Member BettyGee's Avatar
    Join Date
    Oct 2010
    Location
    Colorado
    Posts
    2,289
    Quote Originally Posted by GailG
    Thanks for adding the directions. I was thinking, instead of a pouch for a cell phone, perhaps one for eyeglasses.
    Excellent idea! I think that if you were making one for someone in particular you could put pouches/pockets with that person's likes and needs in mind. I learned a lot making this one and will probably change the pattern to fit the person as you have suggested. Have fun with it.

  20. #20
    Super Member BettyGee's Avatar
    Join Date
    Oct 2010
    Location
    Colorado
    Posts
    2,289
    Quote Originally Posted by Angellight
    This is a great tutorial!
    I have made one from other instructions that has used fabric folded in 1/2 to make larger pockets along the bottom.
    For those who have made the BowTucks bag, - Think the inner pockets... For those who have not use the width of the bag for your Width of Fabric for the pockets, and double it for the height. So on this bag, use a 16"x22" piece of fabric (or whatever size you think will fit the bag). Fold it in half and press. Line the raw edges up with the bottomand sides of the bag. Sew it to the sides of the bag front or back (you can do it on both sides to add more pockets) after you have done your quilting and sew either 2 or 3 seams from the top of your pockets to the bottom of the bag and pockets.
    Finish your bag as described by this tutorial.

    Happy quilting!
    Susan
    I like it! Many thanks for the input, I need all the help I can get.

  21. #21
    Senior Member
    Join Date
    Mar 2010
    Location
    NEW YORK
    Posts
    371
    Blog Entries
    2
    Thank you for the great tut and info. you have done a marvelous job and deserve a tremendous amount of credit Again Thank you very much Frances

  22. #22
    Super Member
    Join Date
    Oct 2009
    Posts
    5,837
    Blog Entries
    1
    Quote Originally Posted by fran624
    Thank you for the great tut and info. you have done a marvelous job and deserve a tremendous amount of credit Again Thank you very much Frances
    exactly!

    :thumbup: :D

  23. #23
    Super Member GailG's Avatar
    Join Date
    May 2008
    Location
    Louisiana
    Posts
    6,763
    Quote Originally Posted by Angellight
    This is a great tutorial!
    I have made one from other instructions that has used fabric folded in 1/2 to make larger pockets along the bottom.
    For those who have made the BowTucks bag, - Think the inner pockets... For those who have not use the width of the bag for your Width of Fabric for the pockets, and double it for the height. So on this bag, use a 16"x22" piece of fabric (or whatever size you think will fit the bag). Fold it in half and press. Line the raw edges up with the bottomand sides of the bag. Sew it to the sides of the bag front or back (you can do it on both sides to add more pockets) after you have done your quilting and sew either 2 or 3 seams from the top of your pockets to the bottom of the bag and pockets.
    Finish your bag as described by this tutorial.

    Happy quilting!
    Susan
    This sounds lilke a good idea, but I don't really follow it very well. I'm a visual learner, so I'll either draw it out or actually cut a piece and work with it.

  24. #24
    Super Member #1piecemaker's Avatar
    Join Date
    Oct 2007
    Location
    Ashdown, AR
    Posts
    9,645
    Blog Entries
    1
    How neat!!!

  25. #25
    Super Member SandyinZ4's Avatar
    Join Date
    May 2010
    Location
    Southeast Idaho
    Posts
    3,165
    Blog Entries
    9
    Betty, Thanks so much for the wonderful tut! You did great. Glad you joined the tut crowd. I am sure this will be a popular one. I know how busy everyione is during summer so we all appreciate your efforts. :-)

Page 1 of 2 1 2 LastLast

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •

SEO by vBSEO ©2011, Crawlability, Inc.
