Thread: Question about oiling a juki tl-98

  1. #1
    Super Member Quiltforme's Avatar
    Join Date
    Aug 2010
    Location
    Beautiful Washington state!
    Posts
    3,339
    I have this wonderful machine and have no idea how to oil it. I cannot find my manual at the moment and wanted to know if anyone knew off the top of their heads where the oil might go. Thanks for the help! :XD:

  2. #2
    Super Member Rebecca VLQ's Avatar
    Join Date
    Mar 2010
    Location
    North Carolina
    Posts
    2,489
    There are holes in various spots on the case...if the "hole" fills up, it's not an oiling hole! Perhaps about 6 are? Look on the bed, toward the needle, away from the needle, where the bobbin winder is, then to the left toward the end of the arm.

  3. #3
    Senior Member jamh's Avatar
    Join Date
    Sep 2009
    Location
    cordele ga
    Posts
    615
    Blog Entries
    1
    I have this machine too and NO where in the manual does it tell you where to oil it!! I was wondering the same thing, maybe someone can answer it for us! lol I was thinku=ing about calling the company, But I hate customer service!!

    So in the mean time, I just take it apart and clean it really well! It's a fuzz hog!!!

  4. #4
    Super Member katsewnsew's Avatar
    Join Date
    Oct 2009
    Location
    Mesa, Arizona
    Posts
    2,371
    I have the TL98E and I took a red sharpie and circled around the inside of each hole that needs to be oiled. There are a total of 7 including the bobbin case.
    There are 4 on the very top of the machine. You will see that they are the same size holes. The first 2 on the left and the 2 on the right. Then next to the needle you will see 3 holes, just a drop in the top one, then go across to the hole on the right by itself. Final one is the bobbin case. That's it! If you need a pix of my machine with the red marks, let me know, I will be happy to send it on to you. Good luck!

  5. #5
    Senior Member pstoner's Avatar
    Join Date
    Mar 2010
    Location
    Solon, Iowa
    Posts
    892
    Quote Originally Posted by Quiltforme
    I have this wonderful machine and have no idea how to oil it. I cannot find my manual at the moment and wanted to know if anyone knew off the top of their heads where the oil might go. Thanks for the help! :XD:
    I have the TL98Q, would believe the oiling holes are the same, if you don't get your answer before I get home from work, I can scan the maintenance page for you and pm it to you if you would like.

    you can join the TL98 Juki yahoo groups if you need it before then, they also have the information also.

  6. #6
    Senior Member pstoner's Avatar
    Join Date
    Mar 2010
    Location
    Solon, Iowa
    Posts
    892
    Quote Originally Posted by jamh
    I have this machine too and NO where in the manual does it tell you where to oil it!! I was wondering the same thing, maybe someone can answer it for us! lol I was thinku=ing about calling the company, But I hate customer service!!

    So in the mean time, I just take it apart and clean it really well! It's a fuzz hog!!!
    http://groups.yahoo.com/group/JukiTL98Qmachinequilting/
    this is the link for yahoo groups.

  7. #7
    Super Member Quiltforme's Avatar
    Join Date
    Aug 2010
    Location
    Beautiful Washington state!
    Posts
    3,339
    I do have to agree with the fuzz monster I swear sometimes after sewing for an hour I have enough fuzz to line my quilt! I will check out the links thank you!

  8. #8
    Super Member Quiltforme's Avatar
    Join Date
    Aug 2010
    Location
    Beautiful Washington state!
    Posts
    3,339
    I followed your instructions the machine purrs again, I am afraid to oil the bobbin case where exactly to you oil it? and doesnt this mess with your thread?

  9. #9
    Super Member Rebecca VLQ's Avatar
    Join Date
    Mar 2010
    Location
    North Carolina
    Posts
    2,489
    Quote Originally Posted by Quiltforme
    I followed your instructions the machine purrs again, I am afraid to oil the bobbin case where exactly to you oil it? and doesnt this mess with your thread?
    On the bed of the machine...if you're "sitting" at it, it would be to the right of the needle, and I think the feed dogs. Kids are asleep, so I'm afraid to turn on the light to look...

  10. #10
    Super Member moonrise's Avatar
    Join Date
    May 2010
    Location
    Northwest Georgia
    Posts
    3,403

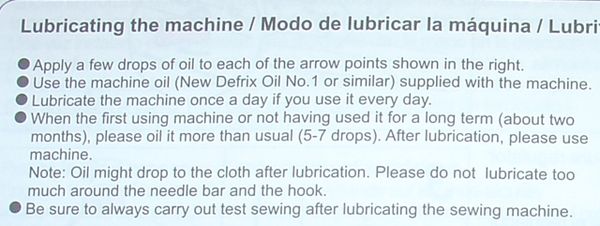

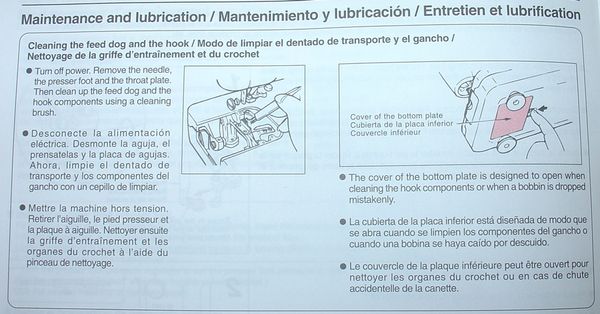

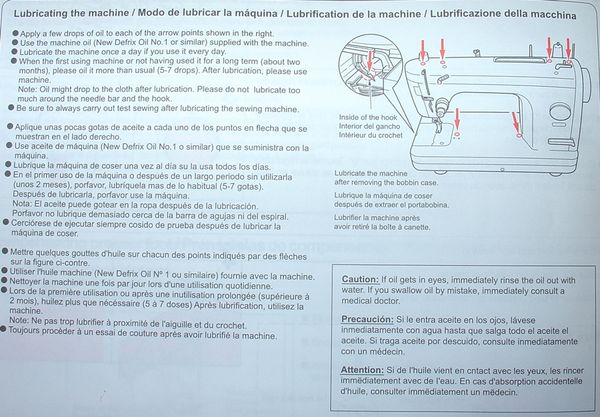

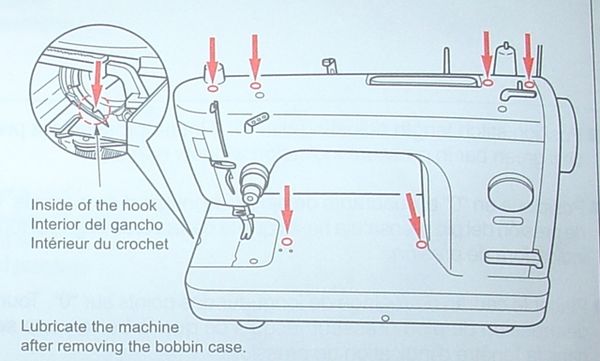

    Here are the two relevant sections of my owner's manual. Mine is a Juki TL98Q.

    It doesn't show in the photo, but it says at the top of the page to turn off and unplug the machine before working on it.

    Enlarged version of above
    Name:  Attachment-113953.jpe
Views: 1056
Size:  33.1 KB

    Enlarged version of above
    Name:  Attachment-113954.jpe
Views: 1214
Size:  33.1 KB
    Attached Images Attached Images


  11. #11
    Super Member Quiltforme's Avatar
    Join Date
    Aug 2010
    Location
    Beautiful Washington state!
    Posts
    3,339
    THANK YOU !!!!

  12. #12
    Super Member moonrise's Avatar
    Join Date
    May 2010
    Location
    Northwest Georgia
    Posts
    3,403
    You're welcome. :)
